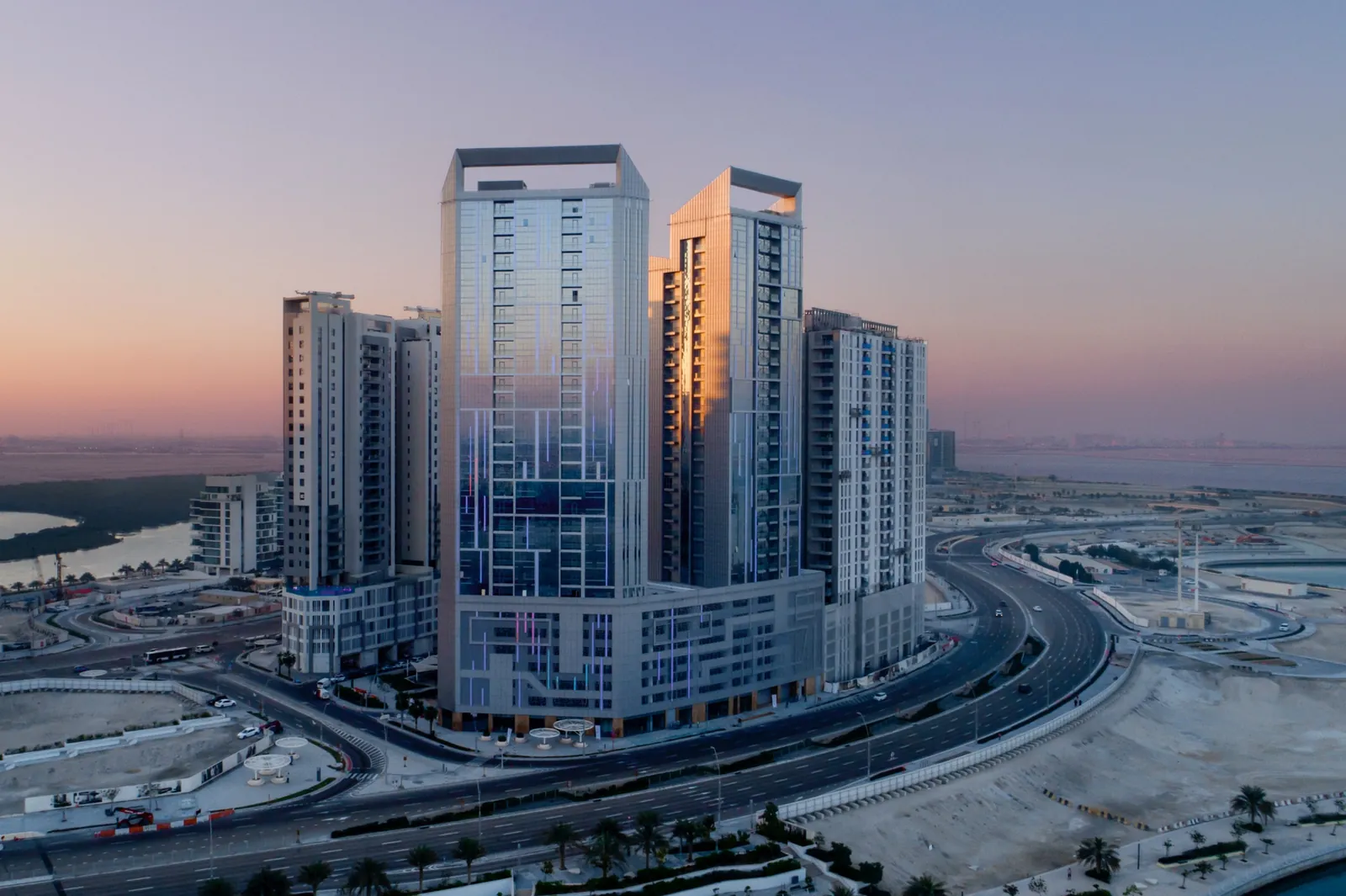

Al Jeel Tower
A full ELV and ICT installation package across a 168-apartment residential and retail tower — 432 cameras, 2,391 data outlets, 95 controlled doors and close to 2,500 fiber splices, delivered as specialist subcontractor to the main systems integrator.
Al Jeel Tower, Abu Dhabi
- Project
- Al Jeel Tower
- Sector
- Residential & Retail Tower
- Location
- Abu Dhabi, UAE
- Delivered
- 2020
- Role
- ELV & ICT subcontractor to the main systems integrator
The scale of the delivery
A live residential tower build with 168 apartments, retail units and GSM rooms — every flat, riser and equipment room needing cabling, fiber, cameras and door hardware installed to programme without holding up the main contractor.
In-apartment Cat6A and RG6 cabling, a single-mode fiber backbone from apartment ONUs through FTR to MTR, 432-camera CCTV, 95-door access control and 82 racks across every equipment room.
Every link Fluke-tested, every fiber core spliced and tested, and every rack labeled to standard — an ELV package the main contractor could hand over without rework.
Real delivery, real engineers
The work at Al Jeel Tower, discipline by discipline — every system specified, installed, tested and commissioned on the ground by one accountable IP Care team.

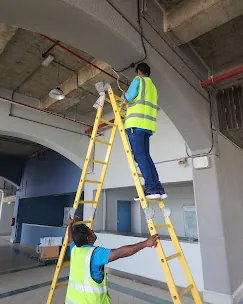

CCTV Systems
Four hundred and thirty-two cameras positioned, mounted and aligned across apartments levels, podium, parking and external approaches — each on a dedicated Cat6A run pulled, terminated and Fluke-tested before the camera went up.
- 326 indoor cameras fixed and aligned
- 106 outdoor cameras fixed and aligned
- 432 dedicated Cat6A camera runs, terminated and Fluke-tested
- 13 racks built out with CCTV equipment and terminations (10 × 27U, 3 × 42U)
- 20 six-core fiber pulls from security IDF locations to the CCTV main rack

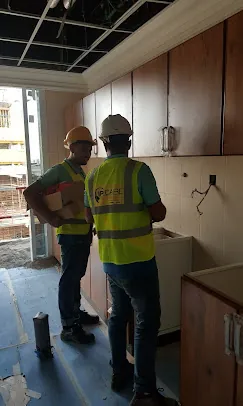

In-Apartment Cabling
Every one of 168 apartments cabled from the ONU to the faceplate — dual-point Cat6A for data and RG6 for television, terminated at both ends, patched into the floor rack and Fluke-certified flat by flat.
- 2,391 Cat6A dual-point outlets pulled, terminated and Fluke-tested
- 536 RG6 television points from ONU to faceplate
- Patch panel installation and termination at every floor rack
- 168 apartments plus retail units completed

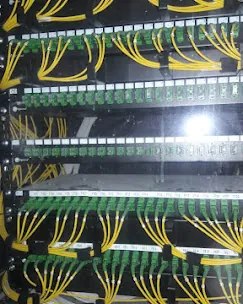

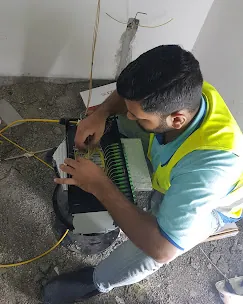

Fiber Backbone & Splicing
The tower runs on single-mode fiber from each apartment ONU up through the floor rooms to the main telecom room. Close to 2,500 cores were spliced and tested — 2-core to the flats, 8- and 16-core on the risers and GSM links.
- 336 splices on 2-core apartment ONU to FTR links, 168 pulls
- 768 splices on 16-core FTR distribution, 48 pulls to MTR
- 768 splices on 16-core terminations inside the main telecom room
- 192 splices on 8-core GSM connectivity, GSM room and MTR sides
- 100 splices on 8-core retail ONU links to FTR and MTR
- 300 splices on 6-core security and ELV equipment room links
- Patch panel and drawer installation included throughout
Access Control
Ninety-five doors cabled and commissioned end to end — door contact, magnetic lock, push button, break glass and card reader on every leaf — with 61 access control panels and their power supplies installed in the telephone rooms.
- 67 single-door sets: door contact, maglock, push button, break glass, card reader
- 28 double-door sets: 2 × door contact and maglock, plus push button, break glass, card reader
- 61 access control panels and 61 power supplies installed in telephone rooms
- 1 × 27U rack built out in the main ELV room with access control equipment
- Cable pulling, installation, termination and testing on every device

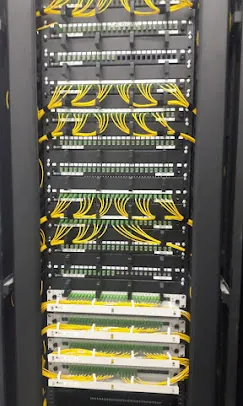

Racks & Equipment Rooms
Eighty-two racks installed and dressed across floor telecom rooms, GSM rooms, retail units, the main telecom room and the ELV room — each one built out with its equipment, patched, labeled and left ready for handover.
- 49 × 12U racks in floor telecom rooms (FTR)
- 8 × 42U racks in the main telecom room
- 6 × 12U GSM racks and 5 × 15U racks in retail units
- 13 × CCTV racks (10 × 27U, 3 × 42U) and 1 × 27U ELV rack
- Equipment mounting, termination and labeling to standard throughout
The work, item by item
The installation scope delivered at Al Jeel Tower, discipline by discipline. Equipment was supplied by the main contractor; every quantity below is work carried out, terminated and tested by IP Care.
CCTV
| Work item | Qty |
|---|---|
| Cat6A pulling, termination and Fluke testing for cameras | 432 |
| Indoor camera fixing | 326 |
| Outdoor camera fixing | 106 |
| 27U rack installation with CCTV equipment and termination | 10 |
| 42U rack installation with CCTV equipment and termination | 3 |
| 6-core fiber pulling, security IDF to CCTV main rack | 20 |
| 6-core fiber splicing and testing, incl. patch panel drawer | 240 |
Access Control
| Work item | Qty |
|---|---|
| Single-door ACP set — cable, install, terminate, test | 67 |
| Double-door ACP set — cable, install, terminate, test | 28 |
| ACP panel installation in telephone rooms (incl. power supply) | 61 |
| 6-core fiber pulling, IDF rack to ELV equipment room | 5 |
| 6-core fiber splicing and testing, incl. patch panel drawer | 60 |
| 27U rack installation in main ELV room with ACS equipment | 1 |
In-Apartment Cabling
| Work item | Qty |
|---|---|
| Cat6A dual-point pulling, termination and Fluke testing | 2,391 |
| RG6 TV cable pulling and termination, ONU to faceplate | 536 |
Fiber Backbone
| Work item | Qty |
|---|---|
| 2-core pulling, apartment ONU to FTR (168 flats) | 168 |
| 2-core splicing and testing, apartment ONU to FTR | 336 |
| 16-core pulling, FTR to MTR | 48 |
| 16-core splicing and testing from FTR | 768 |
| 16-core splicing and testing inside MTR | 768 |
| 8-core pulling, GSM to MTR | 12 |
| 8-core splicing and testing, GSM room side | 96 |
| Splicing and testing for GSM connectivity, MTR side | 96 |
| 16-core pulling, retail ONU to FTR (8 cores terminated) | 5 |
| 8-core splicing and testing, retail ONU to FTR | 50 |
| 8-core splicing and testing, retail ONU FTR to MTR | 50 |
Racks
| Work item | Qty |
|---|---|
| 12U rack installation in floor telecom rooms (FTR) | 49 |
| 42U rack installation | 8 |
| 12U rack installation (GSM rooms) | 6 |
| 15U rack installation in retail shops | 5 |
Finished means documented
Fluke tested throughout
Every Cat6A link — 2,391 in the apartments and 432 on cameras — pulled, terminated and Fluke-tested as part of the installation scope.
Fiber spliced and tested
Close to 2,500 single-mode cores spliced and tested from apartment ONUs through floor rooms to the main telecom room, patch panels and drawers included.
Labeled to standard
Racks, panels, outlets and fiber cores labeled to the project standard, with all installation accessories and tooling supplied by IP Care.
Delivered to programme
Work staged with the main contractor across cabling, installation, termination, testing and final snagging so the ELV package never held up handover.
